SJ 235 - Slab Joint Çatlak Kontrol Derzi 3 mt

Arfen Industrial floor expansion joints are steel expansion joints that are easily applied in industrial floors, minimize uncontrolled crack formation, and extend the service life of heavy-duty concrete slabs. They are produced as standard with steel surface, hot-dip galvanizing, and stainless steel (SS 304 grade). For floors exposed to aggressive solutions such as lactic acids, an alternative made of 316 grade stainless steel is also available.

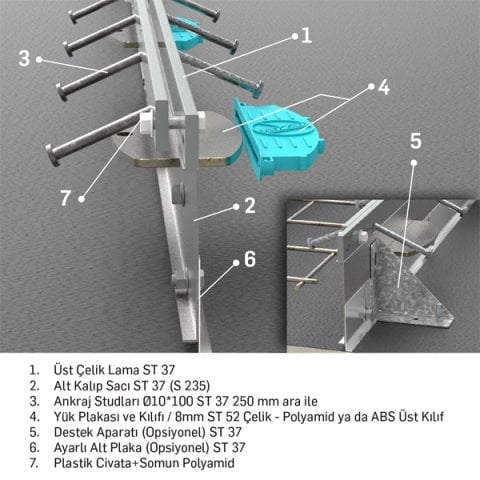

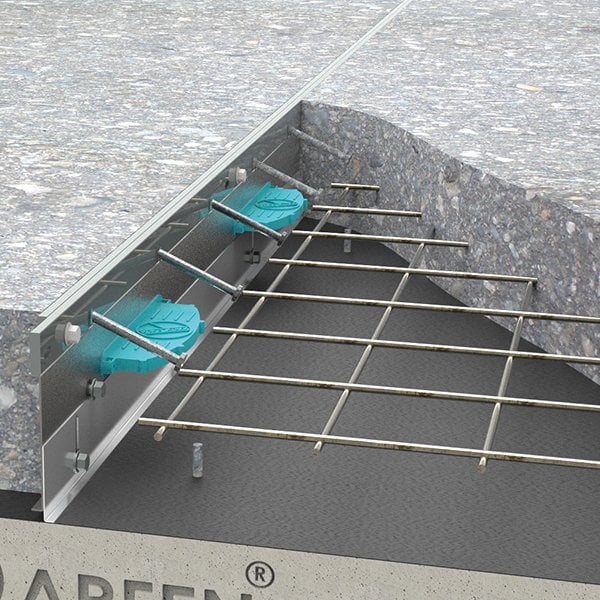

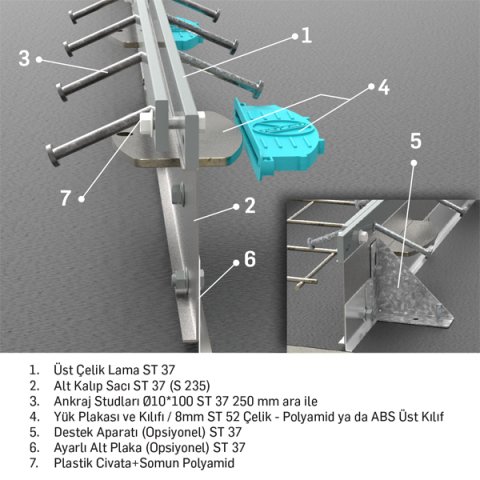

Shrinkage control joints are designed to minimize vertical movement with load transfer plates, while allowing for movement of up to ±20 mm in the horizontal and longitudinal directions. These joints are installed in concrete slabs to prevent the formation of random cracks.

Height: 235 mm

Size: 3 meters

Recommended Depth: 235-285 mm

PRODUCTS ARE PRICED ACCORDING TO UNGALVANIZED BLACK SHEET METAL.
