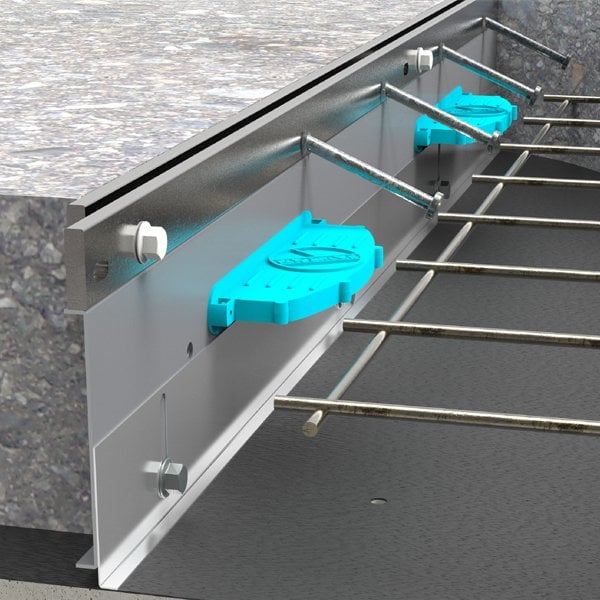

SJ 165 - Slab Joint Çatlak Kontrol Derzi 3 mt

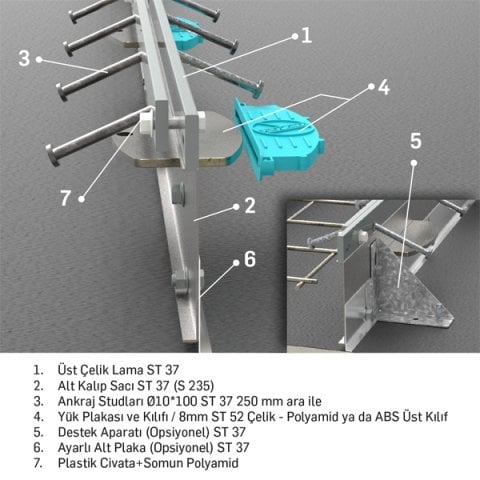

Arfen Industrial floor expansion joints are steel expansion joints that are easily applied in industrial floors, minimize uncontrolled crack formation, and extend the service life of heavy-load resistant concrete slabs. They are produced as standard with steel surface, hot-dip galvanizing, and stainless steel (SS 304 grade). For floors exposed to aggressive solutions such as lactic acids, a 316 grade stainless steel alternative is also available.

Shrinkage control joints are designed to minimize vertical movement with load transfer plates, while allowing for movement of up to ±20 mm in the horizontal and longitudinal directions. These joints are installed in concrete slabs to prevent the formation of random cracks.

Height: 165 mm

Size: 3 meters

Recommended Depth: 165-185 mm

PRODUCTS ARE PRICED ACCORDING TO UNGALVANIZED BLACK SHEET METAL.
